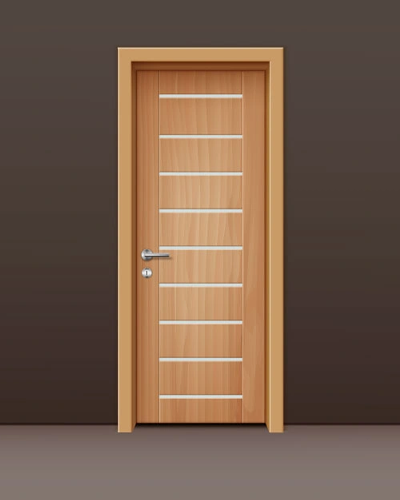

FLUSH DOOR (IS : 2202)

KDC Flush door is a durable product having excellent quality, exceptional finish and unique dimensional stability. It is made of selected pinewood frames and evenly sized batons. Only the finest quality of wood is used to manufacture a world class product. BWP grade of Phenol Formaldehyde resin is used for bonding the layers. Our Flush door is a perfect finish door. In-house frame Section makes KDC a '0' GAP Flush door. Only 'A' grade Gurjan face & core veneer of 2.5mm thickness with superior PF Resin provides long life To KDC Flush doors.

Manufacturing Details

  • Manufactured from selected timber & solid core construction.
  • Doors are framed in seasoned hard wood battens & pressed at high pressure with phenol formaldehyde.

Advantage

  • Best of all teak veneer is used on both side of decorative flush door.
  • Chemically treated against termite/borer/Fungus & other organisms.
  • Best of all teak veneer is used on both side of decorative flush door.
  • Anti warp properties to make it dimensionally stable for smooth internal and external use.
  • Act as insulation against heat & sound.

Application

  • Flush Door – Ideal where water splashing is common such as toilet, bathroom & balcony Doors.
  • Decorative Flush Door – where elegance is required, widely used for entrance, living area doors, Toilet, Bathroom & Balcony Doors.

Available in

  • Thickness – 25mm / 30mm / 32mm / 35mm / 38mm / 40mm / as per requirement.
Test Technical Detaails Results
Moisture Content - 5% To 10%
Dimensions & Squarness - Length & width shall be within a limit - should not exceed 6 mm
Impact Test - The Depth of denotation should not be more than 0.2 mm by 500gm steel ball.
Flexure Test - The deflection at a load of 50kg shall not be more than 1/10 of length & 1/15 of width which ever is less.
Edging Bending Test - Deflection after applying load of 100 kg should not exceed 5mm. Residual deflection should not exceed 0.5mm & Lateral bending not more than 2mm.
Shock Resistance Tes - No visible damage after 25 blows of 30 kg bags
Slamming of Shutter - No visible damage after 50 impacts
Moisture Test - No deformation
Varying Humidity test - Recovery of the original size after subjecting the door to high & low humidity is excellent
Glue Adhesion - Glue line between plywood face & core does not show any signs of delimitation
Knife Test - Excellent
Screw holding strength - More than 1500 N
Specific Gravity - 0.55 To 0.60
Water absorption - Less then 1%
Screw withdrawal Test - More than 1000N
Nail holding strength - More than 500 N
